Product Overview

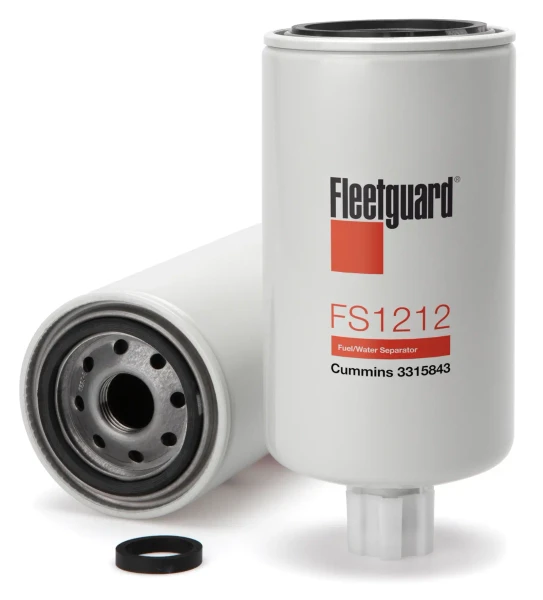

Fleetguard FS1212 Fuel Water Separator Filter
Genuine Fleetguard FS1212 fuel water separator spin-on filter uses cellulose media to help remove water and harmful particulates from fuel before they reach the engine. The FS1212 provides fuel-system protection by helping deliver clean fuel and cross-references Donaldson P558000, Baldwin BF1212, NAPA 3405, Wix 33405, Carquest 86693, Luber Finer LFF8020, and numerous Cummins, Caterpillar, Ford, Paccar, Volvo, Komatsu, and equipment manufacturer part numbers listed below.
Fleetguard FS1212 Fuel Water Separator Filter Cross References
| Manufacturer or Brand | FS1212 Cross-Reference Part Number |
|---|---|
| Fleetguard | FS1212 |
| Donaldson | P558000 |
| Baldwin | BF1212 |
| NAPA | 3405 |
| Wix | 33405 |
| Carquest | 86693 |
| Luber Finer | LFF8020 |
| Daewoo | 65125035025A, 65125035011, 65125035011E, 24749060, 24749058 |
| Hyster | 1512735 |
| Volvo Construction Equipment | 2551717 |
| Daimler | 409000252K, 409000252 |
| Kubota | K1J30143172 |
| Isuzu | 1132400441 |
| Case IH | 2835, 28035, 498435C1, 90394151, E1950565, 903941T1 |
| Cummins | A055M277, 5525164, 1492249, 1492278, 1492200, C156172, 3315844, 252811, 158172, 3315804, 154709, 3329289, 3831132, 3315843, 3310216, 3308638, 3600980 |
| Fiat Hitachi | 76500357, 76192900, 71455185 |
| Thermo King | 115948 |
| Motorcraft | FL152, FD152, FD152FP, EFG12, FD816, FD816FP, FD3373 |
| Continental | PC1103 |
| Hitachi | 4175915, L4291867, 4616864, 4291867, 40859121 |
| Hino | 234011220 |
| Massey Ferguson | 3621382M1 |
| Champion Road Machinery | 24351, 36849 |
| Paccar | Y02111703, 1046Z144, 104Z144, Y03702609 |
| Ford | 5000987, V79080, C6TZ9155A, 72MF9176AA, C6TZ9155B, F1HT9155BA, 83DB9155AA |
| DAF | 3329289, C3315844, C3308638 |
| New Holland | 84557707, V79080, 73144663, 84557704 |
| Link-Belt | 3A11535, 3A15998, C6H0279 |
| AGCO | AG711048, 71370788 |
| Caterpillar | 2568753, 3I1143, 9Y4402, 9Y4432, 9Y4431, 3I1365 |
| Nissan | 17380LA30A |
| Mobil | MCC231US |
| Doosan | 65125035018B, 95125035025, 65125035016B, 65125035016A, 65125035011D, 40050400218, 40050400075, 24749060A |
| Western Star | 170013418 |
| Atlas Copco | 9806000200, 9710177600 |
| John Deere | RE42050, PMFS1212 |
| Hyundai | 11E170220PB, 11E170220 |
| Ingersoll-Rand | 35289081, 91671743, 35290535, 57138554, 35357268 |
| Peterbilt | 514108, PB105 |
| IHC | 244458R91, 598435C1 |
| General Motors | 6436572, 15516983, 25313753, 25011693, 23516189 |
| Bosch | 986BF0302 |
| Kenworth | K251C390, KW105, KW1212 |
| Allis-Chalmers | 4021442 |
| Komatsu | 1214920H1, DA1467, CUFF105, 6221716302, 1244483H1, CUFS1212, CU3315843, 20801K1310, 1240483H1 |
| Volvo | 9991215843, 891733, 24351, 991215847, 991215843, 36849 |
Genuine Fleetguard FS1212 Filter Features
- Genuine Fleetguard fuel filtration: Premium Fleetguard FS1212 spin-on fuel water separator designed to help protect the engine fuel system.
- Water separation: Helps remove water from fuel before it reaches sensitive fuel-system components.
- Particle filtration: Helps remove harmful particulates to support clean fuel delivery to the engine.
- Cellulose filter media: Uses cellulose filtration media with a primary particle efficiency of 17.30 micron(c) at 96%.
- Emulsified water separation: Rated at 90.00% emulsified water separation.
Fleetguard FS1212 Fuel Water Separator Filter Specifications
| Filter Specification | Measurement or Value |
|---|---|
| Filter Type | Fuel/water separator, spin-on |
| Thread Size | 1-14 UNS-2B |
| Media Type | Cellulose |
| Height | 7.92 in / 201.17 mm |
| Largest Outside Diameter | 3.67 in / 93.22 mm |
| Gasket Outside Diameter | 2.83 in / 71.88 mm |
| Gasket Inside Diameter | 2.46 in / 62.48 mm |
| Emulsified Water Separation | 90.00% |
| Primary Particle Efficiency | 17.30 micron(c) @ 96% |
| Rated Flow | 89.83 gpm / 340.00 L/min |
| Standpipe | No |
Cross-reference numbers are provided for identification purposes. Always verify filter compatibility using the original filter part number, equipment model, engine, and fuel-system specifications before placing an order.
