Product Overview

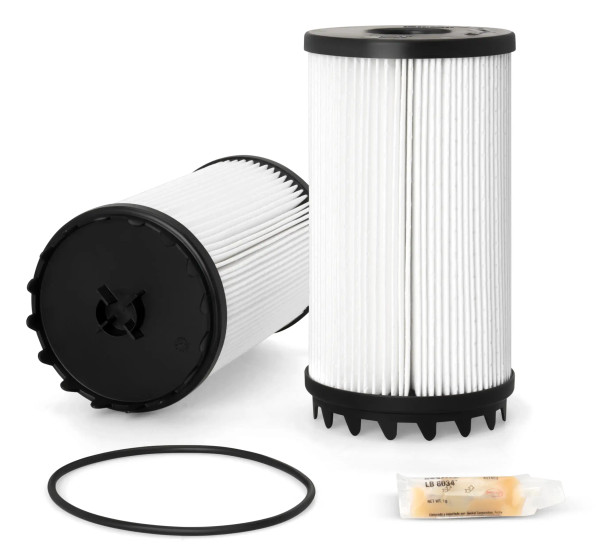

Fleetguard FS20172 Fuel/Water Separator Cartridge
Genuine Fleetguard FS20172 heavy-duty fuel/water separator cartridge with StrataPore media for commercial equipment and diesel fuel systems. The Fleetguard FS20172 cross-references to Donaldson P581299, Baldwin PF46081, NAPA 600500, Wix WF10500, Carquest 96684, Luber Finer L5111F, PACCAR K371010, K371029 and K371011, and Cummins K371029.
Fleetguard FS20172 Fuel/Water Separator Cross References
| Manufacturer or Brand | FS20172 Cross-Reference Part Number |
|---|---|
| Fleetguard | FS20172 |
| Donaldson | P581299 |
| Baldwin | PF46081 |
| NAPA | 600500 |
| Wix | WF10500 |
| Carquest | 96684 |
| Luber Finer | L5111F |
| PACCAR | K371010, K371029, K371011 |
| Cummins | K371029 |
Fleetguard FS20172 Fuel/Water Separator Features
The Fleetguard FS20172 is a heavy-duty cartridge-style fuel/water separator that uses StrataPore media to help remove particulate contamination and emulsified water from diesel fuel. Its supplied emulsified water-separation rating is 98%, supporting cleaner fuel delivery and protection of fuel-system components.
The FS20172 has a rated flow of 2.11 gpm, an overall length of 7.62 inches, and a largest outside diameter of 4.16 inches. It is associated with applications using the listed PACCAR, Cummins, Donaldson, Baldwin, Wix, NAPA, Carquest, and Luber Finer part numbers.
Fleetguard FS20172 Fuel/Water Separator Specifications
| Filter Specification | Measurement or Value |
|---|---|
| Product Type | Fuel/water separator |
| Filter Style | Cartridge |
| Media Type | StrataPore |
| Length | 7.62 in / 193.60 mm |
| Largest Outside Diameter | 4.16 in / 105.70 mm |
| Largest End Inside Diameter | 0.81 in / 20.70 mm |
| Gasket Inside Diameter | 0.81 in / 20.70 mm |
| Emulsified Water Separation | 98% |
| Primary Particle Efficiency | 0.99 |
| Rated Flow | 2.11 gpm / 8.00 L/min |
| Minimum Element Collapse/Burst | 50.00 kPa |
| Standpipe | No |
Cross-reference numbers are provided for identification purposes. Always verify filter compatibility using the original filter part number, equipment model, fuel-system application, dimensions, flow requirements, and filtration specifications before ordering.
