Product Overview

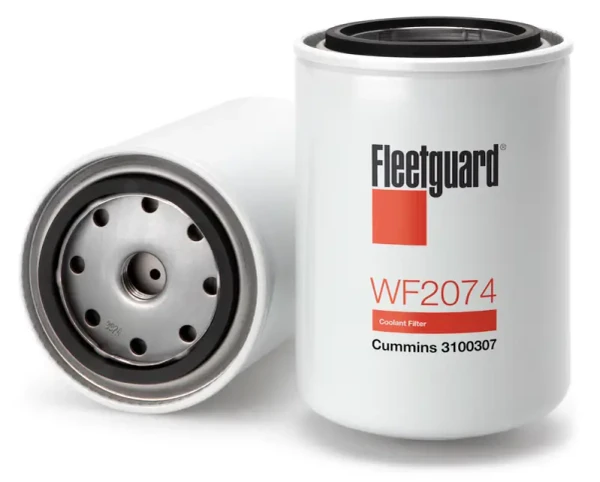

Fleetguard WF2074 DCA4 Coolant Filter
Genuine Fleetguard WF2074 DCA4 chemical coolant filter combines cooling-system filtration with supplemental coolant additive (SCA) delivery to help maintain proper coolant protection. The WF2074 uses DCA4+ pellet additive technology and is designed for rehabilitating ES Compleat® or similar coolant technology. It cross-references Donaldson P552074, Baldwin BW5074, NAPA 4074, Wix 24074, Carquest 89197, Luber Finer LFW4074, Cummins 3100307, and numerous additional equipment manufacturer part numbers listed below.
Fleetguard WF2074 DCA4 Coolant Filter Cross References
| Manufacturer or Brand | WF2074 Cross-Reference Part Number |
|---|---|
| Fleetguard | WF2074 |
| Donaldson | P552074 |
| Baldwin | BW5074 |
| NAPA | 4074 |
| Wix | 24074 |
| Carquest | 89197 |
| Luber Finer | LFW4074 |
| Fiatallis | 9901570 |
| Daewoo | 91008147 |
| Mack | 3076PR3911 |
| BMC Trucks | 9P909753, 9P908727 |
| Buhler | 86029672 |
| Case IH | J100307, S302030, 1815588C1 |
| Cummins | 1303540, 3831133, 3316053, 3315114, 3310752, 3100307 |
| Fiat Hitachi | 76580325, 71495751 |
| Liebherr | 7367935 |
| Hough | LA0230, 1295263H1 |
| Motorcraft | FW8AFP, FW19 |
| Hitachi | E12968663, 12968663, L4299640, E12975524, 4299640, 42996401 |
| Orenstein & Koppel | 1461583 |
| Dongfeng Motor | C3100307 |
| Ford | 861361, E8HN8A424AA, E7HZ8A424C |
| New Holland | 861361, 80861361, 76580325, 47601183 |
| Wirtgen | 20718 |
| AGCO | 72509505 |
| Euclid-Hitachi | E12968663 |
| Alaska Diesel | 2414802 |
| Doosan | K1008147, 91008147 |
| Manitou | 4136240 |
| John Deere | 4299640, AT280321 |
| Terex / Terex Advance | 15270826 |
| Hyundai | 11NA70210, 11LB70010, 11LB70010PB |
| Sisu | 1696300441 |
| Ingersoll-Rand | 22345748 |
| SDMO | 330560058 |
| IHC | 1815588C1 |
| General Motors | 23507189, 25012897 |
| Kalmar | 800039116 |
| XCMG | 384601373 |
| Mc Cormick | 707155A1 |
| Komatsu | CUWF2074, 6742013990, 6004111420, 129263H1 |
| JCB | 2910551A, 2910551 |
| PPM | N6150534 |
| Volvo | 991216053, 12968663, 129686630 |
Genuine Fleetguard WF2074 Filter Features
- DCA4+ coolant additive: Contains DCA4+ supplemental coolant additive designed to help maintain proper cooling-system protection.
- Cooling-system filtration: Provides coolant filtration while simultaneously delivering supplemental coolant additives into compatible cooling systems.
- Pellet additive form: Uses DCA4+ coolant additive in pellet form for controlled additive delivery.
- Coolant rehabilitation: Designed for use in rehabilitating ES Compleat® or similar coolant technology.
- Genuine Fleetguard coolant protection: Fleetguard DCA4 chemical water-filter technology combines filtration and SCA delivery in a single service filter.
Fleetguard WF2074 DCA4 Coolant Filter Specifications
| Filter Specification | Measurement or Value |
|---|---|
| Filter Type | DCA4 chemical coolant / water filter |
| Thread Size | 11/16-16 UN-2B |
| Additive Base | DCA4+ |
| Chemical Additive | DCA4+ |
| Coolant Additive Form | Pellet |
| Height | 5.40 in / 137.21 mm |
| Largest Outside Diameter | 3.67 in / 93.22 mm |
| Seam Outside Diameter | 3.72 in / 94.49 mm |
| Gasket Outside Diameter | 2.83 in / 71.88 mm |
| Gasket Inside Diameter | 2.46 in / 62.48 mm |
Cross-reference numbers are provided for identification purposes. Always verify filter compatibility using the original filter part number, engine or equipment application, coolant type, cooling-system configuration, and filter specifications before placing an order.
