Product Overview

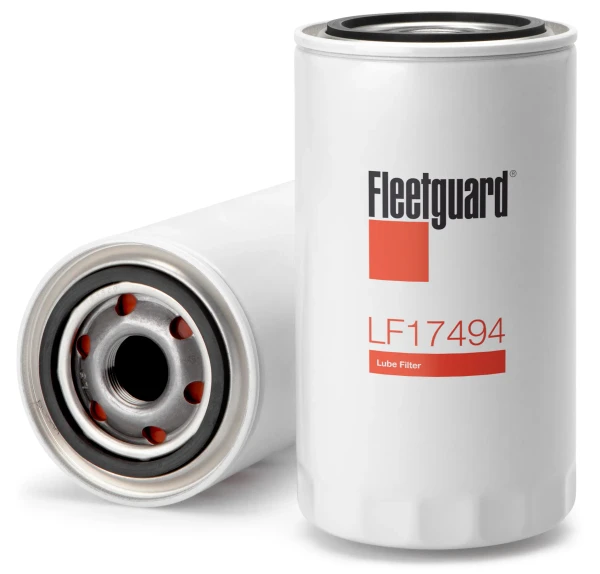

Fleetguard LF17494 Oil Filter
Genuine Fleetguard LF17494 heavy-duty spin-on oil filter with StrataPore media for commercial vehicles and demanding diesel engine applications. The Fleetguard LF17494 cross-references to Donaldson P502503, Baldwin B7379, Luber Finer LFP2051, NAPA 7151, Wix 57151, Carquest 84151, Ford BC376731B, Motorcraft FL2051S, and Motorcraft FL2051.
Fleetguard LF17494 Oil Filter Cross References
| Manufacturer or Brand | LF17494 Cross-Reference Part Number |
|---|---|
| Fleetguard | LF17494 |
| Donaldson | P502503 |
| Baldwin | B7379 |
| Luber Finer | LFP2051 |
| NAPA | 7151 |
| Wix | 57151 |
| Carquest | 84151 |
| Ford | BC376731B |
| Motorcraft | FL2051S, FL2051 |
Fleetguard LF17494 Oil Filter Features
The Fleetguard LF17494 is a heavy-duty spin-on engine oil filter that uses StrataPore media to help remove damaging contaminants from engine oil. Its primary particle efficiency is rated at 98.6% at 20 microns, supporting dependable lubrication and protection of critical engine components.
The LF17494 features a 1-16 UNF-2B thread, a rated flow of 11.89 gpm, and a minimum hydrostatic burst rating of 246.50 psi. An integrated pressure valve supports proper oil flow under applicable operating conditions.
Fleetguard LF17494 Oil Filter Specifications
| Filter Specification | Measurement or Value |
|---|---|
| Product Type | Heavy-duty engine oil filter |
| Filter Style | Spin-on |
| Media Type | StrataPore |
| Thread Size | 1-16 UNF-2B |
| Length | 6.95 in / 176.60 mm |
| Largest Outside Diameter | 3.69 in / 93.60 mm |
| Gasket Outside Diameter | 2.83 in / 72.00 mm |
| Gasket Inside Diameter | 2.46 in / 62.50 mm |
| Primary Particle Efficiency | 98.6% at 20 micron (c) |
| Rated Flow | 11.89 gpm / 45.00 L/min |
| Minimum Hydrostatic Burst | 246.50 psi / 1,700.00 kPa |
| Pressure Valve | Yes |
Cross-reference numbers are provided for identification purposes. Always verify filter compatibility using the original filter part number, equipment model, engine application, thread size, dimensions, and filtration specifications before ordering.
