Product Overview

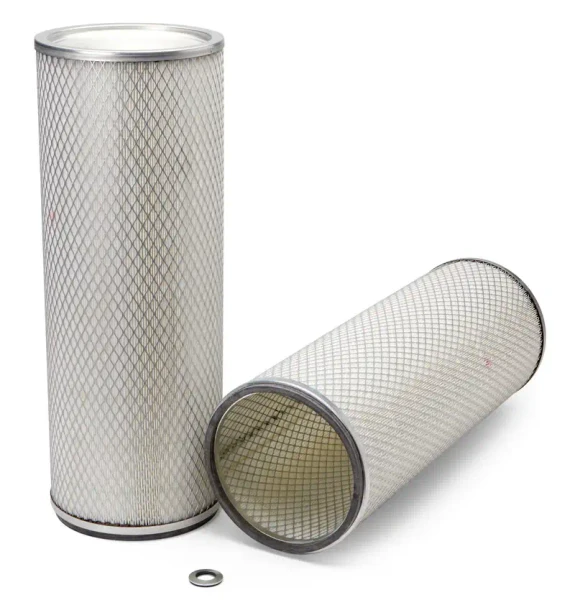

Fleetguard AF890 Axial Seal Secondary Air Filter
Genuine Fleetguard AF890 axial-seal secondary air filter is designed to provide an additional filtration barrier behind the primary air element in compatible heavy-duty air-cleaner systems. Its axial-seal construction helps maintain a secure sealing interface while reducing the risk of airborne contaminants reaching the clean side of the engine intake system. The AF890 cross-references Donaldson P116446, Baldwin PA2457 and PA2461, NAPA 2547, Wix 42547, Carquest 87547, Luber Finer LAF1765, and numerous equipment manufacturer part numbers listed below.
Fleetguard AF890 Air Filter Cross References
| Manufacturer or Brand | AF890 Cross-Reference Part Number |
|---|---|
| Fleetguard | AF890 |
| Donaldson | P116446 |
| Baldwin | PA2457, PA2461 |
| NAPA | 2547 |
| Wix | 42547 |
| Carquest | 87547 |
| Luber Finer | LAF1765 |
| Mijack | 33160427 |
| Reytor | IT116446 |
| Schramm | OHL378 |
| Clark Equipment | 961417 |
| Bomag | 853521309, 5730125 |
| Cyclone Gaskets | PMA116446 |
| Furukawa | 40207071110 |
| Gardner Denver | 2109568, 1157456 |
| FMC | 3H1076 |
| Kawasaki | 30981704307 |
| Tec-Fil | AS456 |
| Case IH | 87404271 |
| John Bean | 3H1076 |
| Insley | 914621 |
| Cummins | 1401647, 1401650, 1402393, 3013211, 3000958 |
| Trojan | 4600179 |
| Motorcraft | FA831 |
| Continental | PCA3273SY |
| Knudson | 281011 |
| Orenstein & Koppel | 101086, 4664168 |
| Chicago Pneumatic | 2PS4240, PS4240, 53PS4240 |
| PACCAR | 46V35 |
| Grove | 9304100037 |
| Link-Belt | 3H1076 |
| Caterpillar | 9Y7801, 8T6289 |
| Refilco | AF2547 |
| Atlas Copco | 2635123520 |
| Hyundai | 11L601880 |
| Barko | 53501214 |
| Dril Tech | 6307056 |
| Ingersoll-Rand | 91780841, 35778422, 35718675, 35711209, 35123520, 35123120 |
| SDMO | 330560063 |
| Lockheed | AP35115A, AP3515, AP3515A, LK3515 |
| Perry | PAK935 |
| Joy | 5432985, 5190020041 |
| General Motors | 8994601 |
| Sullair | 48463 |
| Famel | FR848 |
Genuine Fleetguard AF890 Filter Features
- Secondary air filtration: Genuine Fleetguard AF890 serves as the secondary or safety element behind the primary filter in compatible heavy-duty air-cleaner systems.
- Axial-seal construction: Designed to maintain a secure sealing interface and help reduce unfiltered-air bypass.
- Additional intake protection: Provides a secondary contaminant barrier between the primary element and the clean side of the engine intake system.
- Service protection: Helps protect the intake system if the primary element is damaged, disturbed, or removed during servicing.
- Broad heavy-equipment coverage: Cross-reference applications include Caterpillar, Cummins, Hyundai, Case IH, Grove, Bomag, Atlas Copco, and other industrial and off-highway equipment.
Fleetguard AF890 Air Filter Specifications
| Filter Specification | Measurement or Value |
|---|---|
| Filter Type | Axial-seal secondary air filter |
| Height | 22.07 in / 560.50 mm |
| Largest Outside Diameter | 8.24 in / 209.30 mm |
Cross-reference numbers are provided for identification purposes. Always verify filter compatibility using the original filter part number, vehicle or equipment model, engine, air-cleaner housing, primary and secondary filter configuration, dimensions, and specifications before placing an order.
