Product Overview

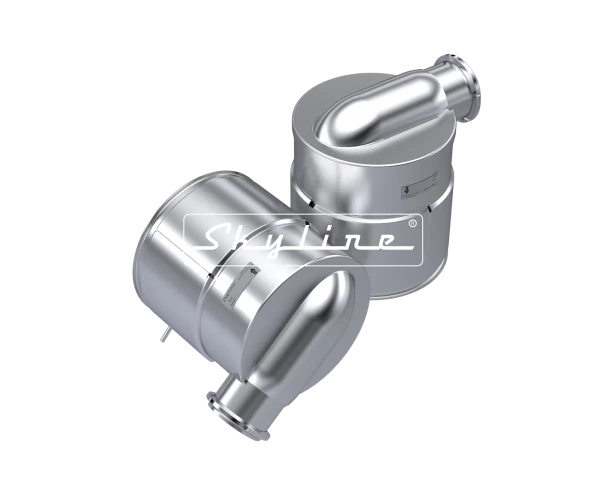

AFTERMARKET REPLACEMENT FOR CUMMINS & PACCAR 2880165 / A029A324 DOC FILTER
Interchangeable Component Configurations: 2880165 | A029A324
OEM CROSS REFERENCE INTERCHANGE MATRIX
Instant Fitment Verification: This direct-fit catalyst replaces components stamped with housing numbers, casting codes, or tag profiles matching any of the interchangeable manufacturing references listed below:
| Manufacturer | Cross Reference Part Numbers |
|---|---|
| Cummins OEM Original | 2880165, 2880165NX, 2880165RX |
| PACCAR OEM Original | A029A324 |
| Skyline Aftermarket | XN0636 |
| Dura-Fit Alternative | C20-0200 |
| Dinex Emissions | 58219 |
| Global Reference | GESi-512 |
Restore commercial fleet emissions performance with this premium Skyline aftermarket Cummins & PACCAR 2880165 / A029A324 DOC Inlet Module Replacement Kit. This brand-new flow-through catalyst module functions as an absolute match for factory-stamped numbers 2880165 and A029A324, seamlessly cross-referencing factory service re-man component builds including 2880165-NX and 2880165-RX. Engineered for an exact fit out of the box with zero exhaust system modifications required, it installs cleanly into the factory setup, carries zero core charge, and ships out in a plain white box with free standard ground shipping within the continental United States.
CHOOSE YOUR KIT CONFIGURATION
Select the setup from the product options above that best fits your shop's needs:
- Full Kit (Best Value): Includes (1) Brand-New Component, (2) heavy-duty installation gaskets (2871453, 2866337), and (2) heavy-duty exhaust clamps (2871863, 2880483) linked cleanly via internal absolute paths.
- Component Only: Includes core unit only. Hardware items excluded.
KEY FEATURES & SPECIFICATIONS FOR PART 2880165 / A029A324
- Proudly Built in the USA: Designed, engineered, and manufactured in America.
- No Core Charge: Brand-new aftermarket component; completely eliminates dirty core tracking and return hassles.
- Exact-Fit™ Technical Dimensions: Built with matching inlet/outlet outer diameters, pre-machined sensor ports, and specialized body hanger brackets for zero exhaust system modifications.
- Substrate Performance Matrix: Advanced flow-through catalyst core uses verified washcoat metal loading to sustain exhaust temperature control and lower backpressure limits.
- Premium Stainless Steel Construction: High-grade stainless steel shell maximizes thermal durability, preventing oxidation under heavy fleet use.
- Industry-Leading Warranty: Backed by an extensive 3-year unlimited mileage coverage matrix.
- EPA Compliant: Meets federal EPA10 emission standards for legal installation nationwide.
- Fast Free Shipping: Free standard ground freight within the continental United States. Overnight and expedited shipping options are available at checkout. Orders confirmed before 2:00 PM Eastern ship out the same business day.
VEHICLE FITMENT GUIDE
Direct alternative solution for supported model year commercial configurations running horizontal chassis architectures:
- Engine Platforms: Highly optimized for heavy-duty Cummins ISX powertrain platforms matching approximate model years 2010-2012.
- Chassis Fitments: Extensively deployed across Class 8 transport setups, long-haul configurations, vocational trucks, and heavy transport chassis systems matching engine requirements.
TECHNICAL SPECIFICATIONS
| Measurement Parameter | Specification Value |
|---|---|
| Overall Length | 341.38 mm / 13.44 inches |
| Outer Body Diameter | 337.00 mm / 13.27 inches |
| Component Dimensions (W x H) | 337.00 mm x 337.00 mm / 13.27 in x 13.27 in |
| Net Assembly Weight | 59.54 LBS / 27.03 kg |
| Exhaust Emissions Norm | EPA10 Compliant |
| Material Base Construction | Stainless Steel |
SIGNS YOUR DIESEL OXIDATION CATALYST (DOC) NEEDS REPLACEMENT
- Frequent, unprompted, or incomplete DPF regeneration cycles linked directly to upstream catalyst efficiency degradation matching part numbers 2880165 / A029A324
- Excessive particulate soot face-plugging or heavy face mask scaling across the internal catalyst face assembly
- Active dashboard diagnostic trouble codes (DTCs) pointing directly to poor catalyst conversion efficiencies or thermal response delays
- Unexplained commercial engine backpressure spikes or noticeable horsepower deterioration under loaded transport pulls
*Note: Always verify exact vehicle compatibility using your vehicle's VIN number, emissions family descriptor tag, or the original stamped part number on your catalyst unit casing before placing an order.
FREQUENTLY ASKED QUESTIONS
Does this replacement DOC require a core return?
No. This is a brand-new aftermarket unit. There are no core charges, core tracking hassles, or return freight expenses required.
What is included in the Full Kit option?
The Full Kit includes the primary XN0636 diesel oxidation catalyst core along with the necessary service components: two (2) high-temperature replacement gaskets (2871453, 2866337) and two (2) heavy-duty exhaust clamps (2871863, 2880483) required for a complete install.
Will this unit clear active dashboard emissions fault codes?
Yes, assuming downstream diesel particulate filters and exhaust sensors are operating within specification. Replacing a degraded catalyst restores legal conversion thresholds, allowing the vehicle control module to clear active DOC efficiency faults.
Disclaimer: Product images for reference only. Hardware depends on configuration. Price is for (1) unit. Inventory levels are subject to local availability updates. Selecting the "Full Kit" option adds the explicitly listed installation components to your shipment.
