Product Overview

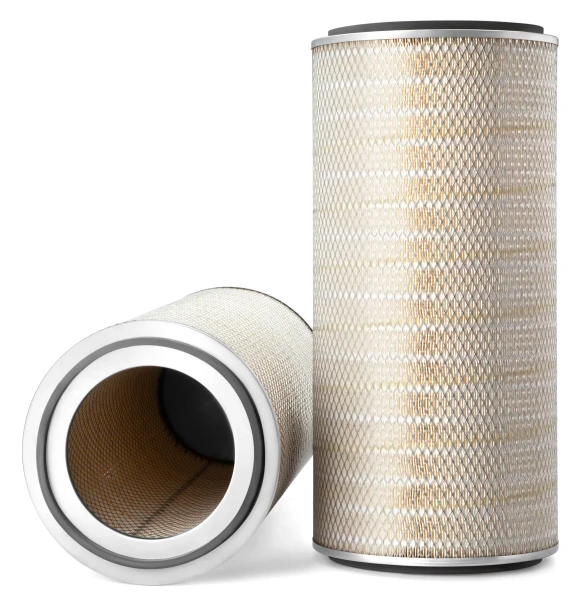

Fleetguard AF996M Axial Seal Primary Air Filter
Genuine Fleetguard AF996M heavy-duty axial-seal primary air filter designed to help prevent unfiltered air from bypassing the filter element and reaching the engine combustion system. The AF996M provides 99.9% full-life efficiency, supports a rated airflow of 45.14 cubic meters per minute, and cross-references to Donaldson P181186, Baldwin LL2608, Luber Finer LAF2608, NAPA 6868, Wix 46868, Caterpillar 3I0881 and 3I1736, and additional part numbers listed below.
Fleetguard AF996M Axial Seal Primary Air Filter Cross References
| Manufacturer or Brand | AF996M Cross-Reference Part Number |
|---|---|
| Fleetguard | AF996M |
| Donaldson | P181186 |
| Baldwin | LL2608 |
| Luber Finer | LAF2608 |
| NAPA | 6868 |
| Carquest | 88868 |
| Wix | 46868 |
| Reytor | IT160R |
| Caterpillar | 3I0881, 3I1736 |
| Nu-Tech | N2585 |
| General Motors | 25096184 |
| Vortox | AN150W, SSBAN150Z, SSBAN150A, SSBAN150H, AN150B, VF160R, AN150H |
| VMC | AF181186 |
Fleetguard AF996M Axial Seal Primary Air Filter Features
The Fleetguard AF996M is a primary engine air filter with an axial-seal design that helps maintain a secure fit within the air-cleaner housing. A properly seated seal helps reduce the risk of unfiltered air bypassing the element and carrying abrasive airborne contaminants into the engine.
The AF996M provides 99.9% full-life filtration efficiency and supports a rated airflow of 45.14 cubic meters per minute. Its large cylindrical element measures 27.00 inches in length and 12.79 inches at its largest outside diameter for compatible heavy-duty engine air-intake systems.
Fleetguard AF996M Applications and Compatibility
The Fleetguard AF996M cross-references to filter numbers associated with applicable Caterpillar, General Motors, Vortox, and other heavy-duty equipment air-cleaner systems. Always confirm compatibility using the original filter number, equipment model, air-cleaner housing, seal configuration, dimensions, and required airflow before ordering.
Fleetguard AF996M Axial Seal Primary Air Filter Specifications
| Filter Specification | Measurement or Value |
|---|---|
| Product Type | Primary engine air filter |
| Filter Style | Axial seal |
| Length | 27.00 in / 685.80 mm |
| Largest Outside Diameter | 12.79 in / 324.87 mm |
| End 2 Outside Diameter | 12.77 in / 324.41 mm |
| End 2 Inside Diameter | 8.36 in / 212.29 mm |
| End 1 Inside Diameter | 0.66 in / 16.89 mm |
| Rated Flow | 45.14 m³/min |
| Full-Life Efficiency | 99.9% |
Cross-reference numbers are provided for identification purposes. Always verify compatibility using the original filter part number, equipment model, air-cleaner housing, seal configuration, dimensions, airflow requirements, and filtration specifications before ordering.
