Product Overview

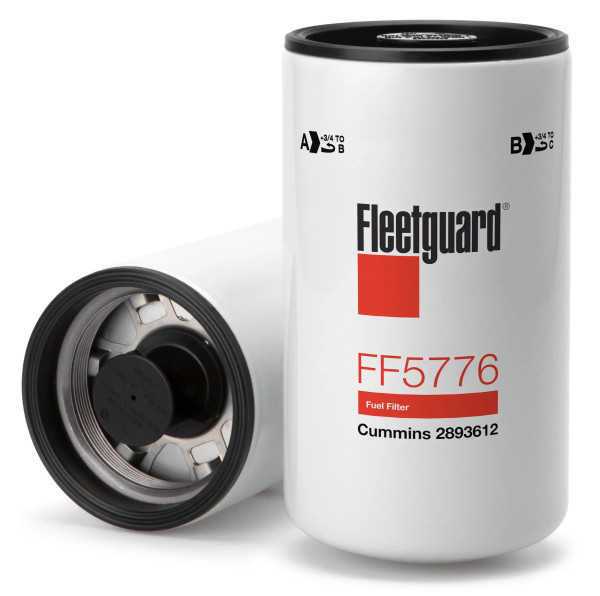

Fleetguard FF5776 Fuel Filter
Genuine Fleetguard FF5776 heavy-duty spin-on fuel filter with StrataPore media for demanding commercial diesel fuel systems. The FF5776 provides 98.7% primary particle efficiency at 5 microns and features an M90 x 2-7H internal thread. It cross-references to Donaldson P555776, Baldwin BF9885, Wix WF10123, NAPA 600123, Carquest 96498, Luber Finer LFF6776, and Cummins 4331007, 3658306, 2893612, 2864993, and 5365988.
Fleetguard FF5776 Fuel Filter Cross References
| Manufacturer or Brand | FF5776 Cross-Reference Part Number |
|---|---|
| Fleetguard | FF5776 |
| Donaldson | P555776 |
| Baldwin | BF9885 |
| Cummins | 4331007, 3658306, 2893612, 2864993, 5365988 |
| Wix | WF10123 |
| NAPA | 600123 |
| Carquest | 96498 |
| Luber Finer | LFF6776 |
Fleetguard FF5776 Fuel Filter Features
The Fleetguard FF5776 uses StrataPore media to provide high-efficiency particulate filtration in heavy-duty diesel fuel systems. Its supplied primary particle efficiency is 98.7% at 5 microns, helping protect fuel-system components from damaging contamination.
The FF5776 features an M90 x 2-7H internal thread, an 8.92-inch overall length, and a 4.72-inch largest outside diameter. Its spin-on design supports straightforward filter service in compatible commercial equipment and diesel engine applications.
Fleetguard FF5776 Fuel Filter Specifications
| Filter Specification | Measurement or Value |
|---|---|
| Product Type | Heavy-duty fuel filter |
| Filter Style | Spin-on |
| Media Type | StrataPore |
| Thread Size | M90 x 2-7H internal |
| Length | 8.92 in / 226.52 mm |
| Largest Outside Diameter | 4.72 in / 119.89 mm |
| Gasket Outside Diameter | 4.68 in / 118.87 mm |
| Gasket Inside Diameter | 4.00 in / 101.60 mm |
| Primary Particle Efficiency | 98.7% at 5 microns (c) |
| Standpipe | No |
Cross-reference numbers are provided for identification purposes. Always verify filter compatibility using the original filter part number, equipment model, fuel-system application, thread size, dimensions, and filtration specifications before ordering.
