Product Overview

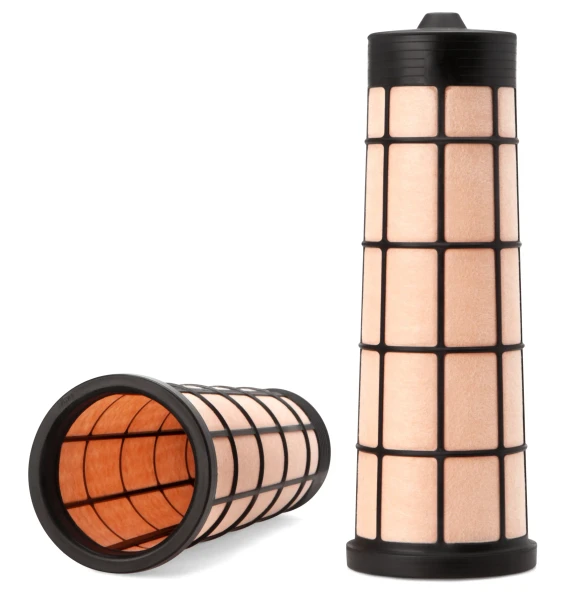

Fleetguard AF4182 Axial Seal Secondary Air Filter
Genuine Fleetguard AF4182 axial-seal secondary air filter is designed to provide an additional filtration barrier behind the primary air element in compatible heavy-duty air-cleaner systems. Its secondary-element design helps reduce the risk of dust, dirt, and other airborne contaminants reaching the clean side of the engine intake system while the axial sealing configuration helps maintain a proper filter-to-housing interface. The AF4182 cross-references Donaldson P611189, Baldwin RS5783 and PA5502, NAPA 9189, Wix 49189, Carquest 93355, Luber Finer LAF5430, John Deere AT332909, and additional equipment manufacturer numbers listed below.
Fleetguard AF4182 Air Filter Cross References
| Manufacturer or Brand | AF4182 Cross-Reference Part Number |
|---|---|
| Fleetguard | AF4182 |
| Donaldson | P611189 |
| Baldwin | RS5783, PA5502 |
| NAPA | 9189 |
| Wix | 49189 |
| Carquest | 93355 |
| Luber Finer | LAF5430 |
| Fiat Kobelco | YY11P00008S002 |
| Gradall | 80774010 |
| Tec-Fil | ASR419 |
| Massey Ferguson | 4379575M1 |
| AGCO | 4379575M1 |
| Doosan | 40050400156 |
| John Deere | AT424914, AT374499, AT332909 |
| Hyundai | 11N429140 |
| Vermeer | 180018407 |
Genuine Fleetguard AF4182 Filter Features
- Secondary air filtration: Genuine Fleetguard AF4182 serves as the secondary or safety element behind the primary air filter in compatible air-cleaner systems.
- Axial-seal design: Designed to maintain a proper sealing interface and help reduce the risk of unfiltered-air bypass.
- Additional engine protection: Provides an additional contaminant barrier between the primary filter and the clean side of the engine intake system.
- Service protection: Helps protect the intake system if the primary element is damaged, disturbed, or removed during service.
- Heavy-equipment coverage: Cross-reference applications include John Deere, AGCO, Massey Ferguson, Doosan, Hyundai, Vermeer, Gradall, and other equipment manufacturers.
Fleetguard AF4182 Air Filter Specifications
| Filter Specification | Measurement or Value |
|---|---|
| Filter Type | Axial-seal secondary air filter |
| Media Type | Other |
| Overall Length | 14.40 in / 365.76 mm |
| Largest Outside Diameter | 5.08 in / 129.00 mm |
| Largest End Inside Diameter | 4.12 in / 104.65 mm |
| Flame Retardant Media | No |
Cross-reference numbers are provided for identification purposes. Always verify filter compatibility using the original filter part number, equipment model, engine, air-cleaner housing, primary and secondary filter configuration, dimensions, and specifications before placing an order.
