Product Overview

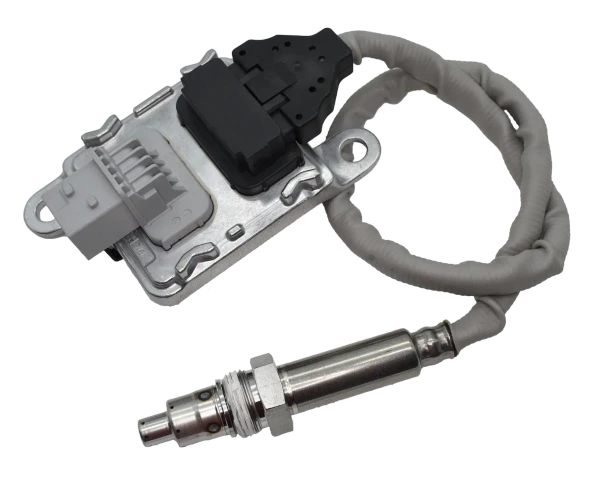

Cummins 4326868 PACCAR 1928760PE 1953530PE Outlet NOx Sensor by Nernex
The Nernex 20.220343 NOx Sensor is a direct-fit aftermarket NOx sensor for compatible applications using Cummins 4326868, PACCAR 1928760PE, and PACCAR 1953530PE. This sensor is used in compatible Cummins and PACCAR exhaust aftertreatment systems and provides NOx concentration data to the vehicle control system for SCR monitoring and emissions control.
Cummins 4326868 PACCAR 1928760PE 1953530PE NOx Sensor Cross References
| Manufacturer / Brand | Cross Reference |
|---|---|
| Cummins | 4326868, 4326868NX, 4326868RX, A045S162 |
| Cummins | 4326476, 4326476NX, 4326476RX |
| Cummins | 2897311, 2897311NX, 2897311RX |
| Cummins | 2872779, 2872779NX, 2872779RX |
| PACCAR | 1928760PE, 1928760PEX, 1928760RX, 1928760 |
| PACCAR | 1953530PE, 1953530PEX, 1953530 |
| Continental / VDO | 5WK96752C, 5WK9 6752C |
| Continental / VDO | SNS0152D |
| Continental / VDO | A2C95993600 |
| Dinex | 22035 |
| Global Emission Systems / DPFXFIT | SENN-0012XF |
| Skyline | ANX013 |
| Alliant Power | NX0152 |
| Redline Emissions Products | S11868 |
| Walker Products | 1004-1041 |
| FSS Emission Products | 26868-FSS |
| Nernex | 20.220343 |
Nernex Outlet NOx Sensor Technology
Nernex aftermarket NOx sensors are designed to provide the exhaust-gas measurement required by modern diesel SCR aftertreatment systems. The sensor electronics transmit NOx concentration information to the vehicle control system to support emissions monitoring and SCR system operation.
For the applications listed on this page, the Nernex 20.220343 is used as an outlet / downstream NOx sensor. Because NOx sensor position can vary by engine, vehicle year, and aftertreatment configuration, always confirm the stamped OEM number and original sensor location before installation.
Nernex 20.220343 NOx Sensor Specifications
| Manufacturer | Nernex |
| Part Number | 20.220343 |
| Product Type | Aftermarket NOx Sensor |
| Sensor Position | Outlet / Downstream |
| Voltage | 24 Volt |
| Connector | 4 Pin |
| Emissions Application | EPA10 and later compatible applications |
| System Function | NOx measurement and SCR aftertreatment monitoring |
| California Availability | Available for sale and shipment to California |
Cummins Engine Applications
The Nernex 20.220343 NOx sensor is used in compatible Cummins-powered medium-duty and heavy-duty applications using the matching exhaust aftertreatment configuration.
Compatible Engines: Cummins ISL 8.9L, QSL / QSL9, select ISC 8.9L applications, select B6.7 / ISB 6.7L applications, and other compatible Cummins configurations using the listed OEM sensor family.
Kenworth Peterbilt Freightliner International and Western Star Applications
Kenworth: T370, T400, select T680 applications
Peterbilt: 365 and other select PACCAR medium-duty applications
Freightliner: M2 106, 108SD, 114SD, S2C, MT45
International: MV, 4400LP, 4700, 7500
Western Star: 4700SF
Primary OEM Application Numbers: 4326868, 1928760PE, 1953530PE
Direct-Fit Replacement for Cummins 4326868 and PACCAR 1928760PE
The Nernex 20.220343 is intended as a direct-fit aftermarket replacement for compatible applications using 4326868, 1928760PE, 1953530PE, and the related OEM numbers listed above.
Because the same vehicle model can use different NOx sensors depending on engine, model year, emissions calibration, voltage, and sensor position, always compare the full part number stamped on the original sensor before ordering. Also confirm the sensor location, connector configuration, and vehicle application.
Product images are for reference only. Always verify the original sensor/OEM number, sensor location, voltage, engine application, and connector configuration before installation.
