Product Overview

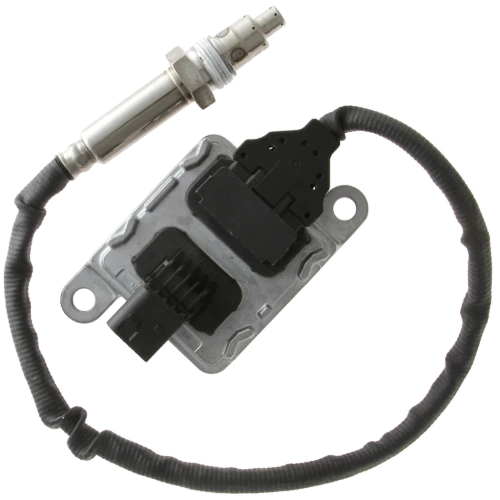

Cummins 4326869, PACCAR 1954666PE, International 2511405C1 Outlet NOx Sensor
Restore heavy-duty SCR emissions-system performance with this premium Dinex 2nd Generation aftermarket Nitrogen Oxide (NOx) sensor. Dinex 5EL013 is designed as a direct-fit outlet / downstream NOx sensor replacement for the high-priority Cummins 4326869, PACCAR 1954666PE, and International 2511405C1 OEM numbers. Additional compatible references include PACCAR 1906307, Cummins 2872947, A034M377, and the applicable service-number variations listed below. Designed for compatible Cummins and PACCAR EPA10 applications, this sensor is backed by an industry-leading 2-Year Unlimited Mileage Warranty.
4326869, 1954666PE and 2511405C1 NOx Sensor Cross References
How to Verify Your Unit: Match the OEM, Continental/VDO, Dinex, or aftermarket part number on the original outlet NOx sensor or control module to one of the cross-reference numbers listed below before ordering.
| Manufacturer / Reference | Interchange Part Numbers |
|---|---|
| Cummins 4326869 | 4326869, 4326869RX, 4326869NX |
| PACCAR 1954666 | 1954666PE, 1954666PRX, 1954666 |
| International / Navistar | 2511405C1 |
| PACCAR 1906307 | 1906307PE, 1906307PRX, 1906307 |
| Cummins 2872947 | 2872947, 2872947NX, 2872947RX, 2872947CUM |
| Additional OEM Reference | A034M377 |
| Continental / VDO | 5WK96753A, 5WK9 6753, 5WK9 6753B, 5WK96753B, A2C34968000-01, A2C3496800001, A2C34968000 |
| Dinex | 5EL013 |
| Nernex | 20.220337 |
| Skyline | SNX003, ANX003 |
| Dorman | 904-6006 |
| Automann | 577.9057 |
| FSS Emission Products | 26869-FSS |
| Global Emission Systems | GESI-0032FX |
Compatible Cummins, PACCAR and Medium-Duty Vehicle Applications
Dinex 5EL013 is designed for applicable EPA10 commercial truck, bus, and vocational configurations using the matching outlet / downstream NOx sensor. Primary applications include Kenworth T680 and T880, Peterbilt 567 and 579, International ProStar, and additional medium-duty configurations using the matching OEM sensor family.
- Cummins Engine Platforms: ISB 6.7L, QSB 6.7L, ISL 8.9L / ISL9 and B6.7 where equipped with the matching EPA10 aftertreatment system
- PACCAR Engine Platforms: PX-6, PX-7, PX-8 and PX-9 in applicable configurations where the OEM sensor number matches
- Kenworth: T680, T880 and applicable medium-duty configurations including T170, T270, T370 and T440 where the OEM number matches
- Peterbilt: 567, 579 and applicable medium-duty 325, 330, 337 and 348 configurations
- International / Navistar: ProStar and applicable DuraStar / MV configurations equipped with compatible Cummins power
- Additional Applications: Applicable Freightliner, Blue Bird, Thomas Built, Gillig, Spartan and other commercial / vocational chassis where the stamped OEM sensor number matches
- Sensor Position: Outlet / downstream / SCR catalyst outlet
- Electrical System: 12 Volt
- Emissions Standard: EPA10
Fitment Verification: NOx sensor applications can vary by engine family, vehicle configuration, model year, emissions system, sensor position, voltage, connector type, cable length, and software calibration. Always verify exact compatibility using the OEM number stamped on the original sensor or control module, vehicle identification number (VIN), or engine serial number (ESN) before ordering.
Dinex 2nd Generation Outlet NOx Sensor Specifications
| Product Type | Nitrogen Oxide (NOx) Sensor |
| Dinex Part Number | 5EL013 |
| Sensor Technology | Dinex 2nd Generation |
| Sensor Position | Outlet / Downstream / SCR Catalyst Outlet |
| Voltage | 12V |
| Exhaust Emission Norm | EPA10 |
| Length | 625.09 mm (24.61 inches) |
| Width | 65.02 mm (2.56 inches) |
| Height | 41.40 mm (1.63 inches) |
| Net Weight | 0.39 kg (0.85 lb) |
| Warranty | Industry-Leading 2-Year Unlimited Mileage Warranty |
Important Fitment Note: NOx sensors can vary by engine family, vehicle configuration, emissions system, sensor position, voltage, connector type, cable length, and software calibration. Always match the replacement sensor to the exact OEM part number stamped on the original sensor or control module, or verify compatibility using the vehicle identification number, engine serial number, or official dealer service information before purchasing. Product images and technical drawings are for reference only.
