Product Overview
Cummins 2871463 5579355 PACCAR Q629362 A064B985 DPF Filter

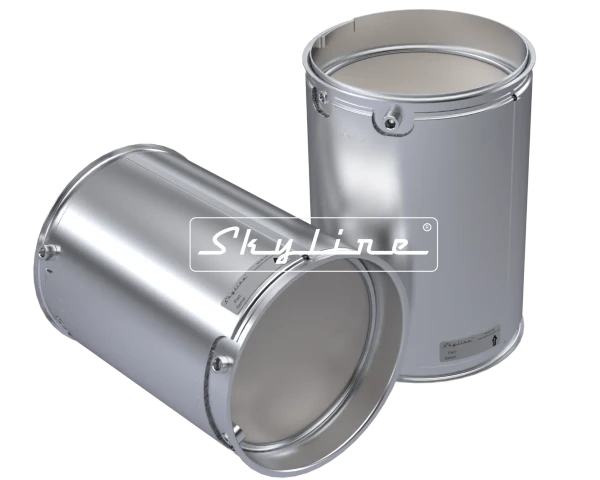

Cummins PACCAR DPF replacement: The Skyline LJ1204 Diesel Particulate Filter is a brand-new aftermarket replacement for 2871463, 2871463NX, 2871463RX, 5579355, 5579355NX, 5579355RX, Q629362 and A064B985. Additional aftermarket cross references include DuraFit C17-0030, Dinex 58006, Roadwarrior C0062-SA and Global Emission Systems GESi-0009.
Engine applications: Intended for select Cummins ISC 8.3L, Cummins ISL 9L and PACCAR PX-8 diesel engine applications using compatible exhaust aftertreatment systems. Approximate model years include select 2010–2012 applications.
Product details and configurations: Brand-new Skyline aftermarket DPF with stainless steel housing, no core charge, EPA07 compliance, and a 3-year unlimited mileage warranty. Choose the DPF only or the Full Kit with two 2871452 installation gaskets and two 2871862 heavy-duty clamps. Ships free within the continental United States.
Cummins PACCAR 2871463 5579355 Q629362 A064B985 DPF Specifications
- Product Type
- Diesel Particulate Filter
- Common Search Terms
- DPF, DPF Filter, Diesel Particulate Filter, Diesel Exhaust Filter
- Primary Part Numbers
- 2871463, 5579355, Q629362, A064B985
- Service Numbers
- 2871463NX, 2871463RX, 5579355NX, 5579355RX
- Manufacturer Part Number
- Skyline LJ1204
- Engine Compatibility
- Select Cummins ISC 8.3L, Cummins ISL 9L, and PACCAR PX-8 applications
- Housing Material
- Stainless steel
- Weight
- 47.63 lb (21.62 kg)
- Overall Length
- 12.75 in (323.85 mm)
- Outer Body Diameter
- 11.67 in (296.50 mm)
- Dimensions
- 11.67 × 11.67 in (296.50 × 296.50 mm)
- Full Kit Hardware
- Two 2871452 installation gaskets and two 2871862 heavy-duty clamps
- Core Condition
- Brand-new aftermarket unit
- Core Charge
- No core charge
- Warranty
- 3-year unlimited mileage warranty
- Exhaust Emission Norm
- EPA07 compliant
Cummins 2871463 5579355 PACCAR Q629362 A064B985 DPF Cross References
DPF part numbers 2871463, 5579355, Q629362 and A064B985 cross-reference with Skyline LJ1204 and the additional service and aftermarket replacement numbers listed below.
| Manufacturer | Cross Reference Part Numbers |
|---|---|
| Cummins/PACCAR OEM References | 2871463, 2871463NX, 2871463RX, 5579355, 5579355NX, 5579355RX, Q629362, A064B985 |
| Skyline | LJ1204 |
| DuraFit | C17-0030 |
| Dinex | 58006 |
| Roadwarrior | C0062-SA |
| Global Emission Systems / GESi | GESi-0009 |
How to Locate Your Stamped Part Number: Original part numbers may be stamped into the metal filter housing or printed on an identification tag attached to the aftertreatment assembly. Always compare the stamped number on your original DPF to the cross-reference numbers listed above before ordering.
Compatible OEM Aftertreatment Assembly References
The following OEM numbers are associated with compatible aftertreatment assemblies using this DPF and are separate from the individual DPF part numbers listed above.
2866338, 2866398, 2866402, 2866408, 2866520, 2866601, 2866605, 2871500, 2871809, 2871846, 2880177, 2880333, 2880335, 2880406, 2880407, 2880425, 2880453, 2880464, 2880472, 2880578, 2880603, 5283921, 5284041, 5288425, 5291485, 5295602, A029M710, A029R444
Cummins ISC ISL PACCAR PX-8 DPF Engine Compatibility & Fitment Guide
This Skyline DPF is intended for select Cummins- and PACCAR-powered commercial diesel applications equipped with compatible exhaust aftertreatment systems. Exact compatibility varies by engine calibration, emissions family, model year, chassis configuration, exhaust layout, master assembly number and the original stamped DPF part number.
- Engine Platforms: Select Cummins ISC 8.3L, Cummins ISL 9L, and PACCAR PX-8 diesel engine applications
- Approximate Model Years: Select 2010–2012 applications
- Installation Hardware: Full Kit uses two 2871452 gaskets and two 2871862 clamps
- Primary Part Numbers: 2871463, 5579355, Q629362, and A064B985
Skyline LJ1204 DPF Kit Configuration
Select the configuration from the product options that best fits your installation needs.
| Option | Included Components |
|---|---|
| Full Kit (Best Value) | Includes one (1) brand-new DPF unit, two (2) 2871452 installation gaskets, and two (2) 2871862 heavy-duty clamps. |
| DPF Only | Includes one (1) DPF only. Gaskets and clamps are not included. |
Skyline LJ1204 DPF Key Features
- Direct-fit replacement for the listed OEM applications
- Brand-new Skyline aftermarket DPF Diesel Particulate Filter
- Full Kit includes two 2871452 installation gaskets and two 2871862 heavy-duty clamps
- DPF Only configuration available without installation hardware
- No core charge or used filter return required
- Stainless steel housing construction
- EPA compliant for applicable federal emissions applications outside California
- Ships free within the continental United States
- Backed by a 3-year unlimited mileage warranty
Signs Your DPF Needs Replacement
- Frequent, incomplete, or unsuccessful regeneration cycles
- Excessive soot loading, ash accumulation, or visible face plugging
- Abnormal DPF differential pressure readings
- High exhaust backpressure
- DPF restriction, soot-capacity, or filter-efficiency diagnostic trouble codes
- Visible soot at the tailpipe that may indicate internal filter damage
- Reduced engine power or performance under load
- Cracking, melting, corrosion, or other physical filter damage
Skyline LJ1204 Multi-Warehouse Shipping
Multi-Warehouse Dispatch: Orders ship from regional fulfillment hubs to help provide fast delivery to your repair shop or location.
*Note: Always verify exact compatibility using your vehicle's VIN number, emissions family descriptor tag, master assembly reference, and the original stamped OEM part number on the DPF before placing an order.
